Container Dimension & Capacity

15 July 2016

20-Foot Standard Dry Cargo Container
Description	Dimension & Capacity	Steel
External Dimensions	Length	6,058mm (19'10"1/2)
	Width	2,438mm (8'0")
	Height	2,591mm (8'6")
Internal Dimensions	Length	5,899mm (19'4"1/4)
	Width	2,352mm (7'9"9/16)
	Height	2,386mm (7'9"15/16)
Capacity	Cubic Measurement	33.1m3 (1,169 cft)
	Tare Weight	2,200 kgs (4,898 lbs)*
	Payload	21,780 kgs (48,020 lbs)
	Gross Weight	24,000 kgs (52,910 lbs)
Door Openings	Width	2,340mm (7'8"1/8)
Door Openings	Height	2,279mm (7'5")

_______________________________________________

40-Foot Standard Dry Cargo Container
Description	Dimension & Capacity	Steel
External Dimensions	Length	12,192mm (40'0")
	Width	2,438mm (8'0")
	Height	2,591mm (8'6")
Internal Dimensions	Length	12,033mm (39'5"3/4)
	Width	2,352mm (7'8"5/8)
	Height	2,386mm (7'9"15/16)
Capacity	Cubic Measurement	67.5m3 (2,385 cft)
	Tare Weight	3,740 kgs (8,250 lbs)*
	Payload	26,740 kgs (58,950 lbs)
	Gross Weight	30,480 kgs (67,200 lbs)
Door Openings	Width	2,340mm (7'8"1/8)
Door Openings	Height	2,279mm (7'5"3/4)

_______________________________________________

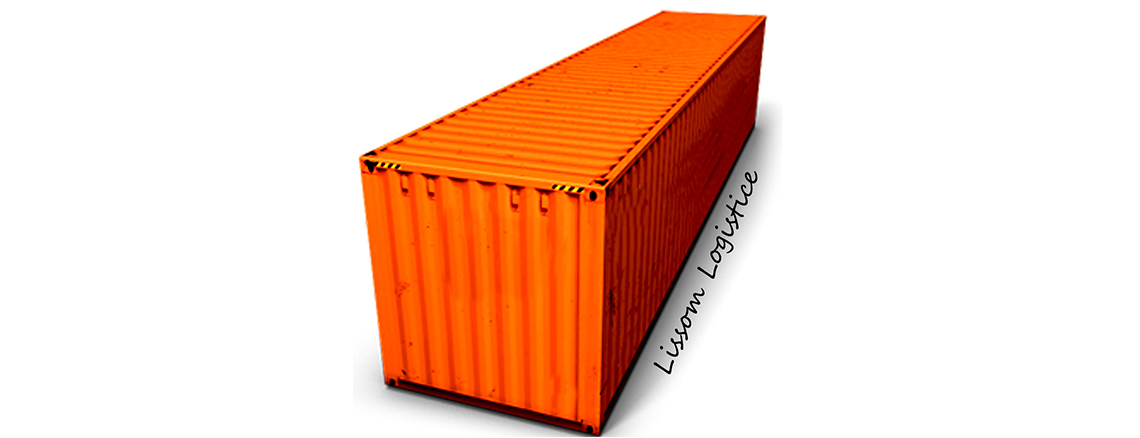

40-Foot Hi-Cube Dry Cargo Container
Description	Dimension & Capacity	Steel
External Dimensions	Length	12,192mm (40'0")
	Width	2,438mm (8'0")
	Height	2,896mm (9'6")
Internal Dimensions	Length	12,033mm (39'5"3/4)
	Width	2,352mm (7'8"5/8)
	Height	2,691mm (8'9"15/16)
Capacity	Cubic Measurement	76.2cm3 (2,385 cft)
	Tare Weight	3,920 kgs (8,640 lbs)*
	Payload	26,560 kgs (58,560 lbs)
	Gross Weight	30,480 kgs (67,200 lbs)
Door Openings	Width	2,340mm (7'8"1/8)
Door Openings	Height	2,577mm (8'5"1/2)

______________________________________________

20-Foot Refrigerated Container
Description	Dimension & Capacity	Steel
External Dimensions	Length	6,058mm (19'10"1/2)
	Width	2,438mm (8'0")
	Height	2,591mm (8'6")
Internal Dimensions	Length	5,486mm (18'0")
	Width	2,270mm (7'5"3/8)
	Height	2,234mm (7'3"15/16)
Capacity	Cubic Measurement	27.8m3 (982 cft)
	Tare Weight	2,750 kgs (6,060 lbs)*
	Payload	21,250 kgs (46,850 lbs)
	Gross Weight	24,000 kgs (52,910 lbs)
Door Openings	Width	2,270mm (7'5"3/8)
Door Openings	Height	2,198mm (7'2"1/2)

_______________________________________________

40-Foot Hi-Cube Refrigerated Container
Description	Dimension & Capacity	Steel
External Dimensions	Length	12,192mm (40'0")
	Width	2,438mm (8'0")
	Height	2,896mm (9'6")
Internal Dimensions	Length	11,669mm (38'3"7/16)
	Width	2,286mm (7'6")
	Height	2,508mm (8'2"3/4)
Capacity	Cubic Measurement	66.9m3 (2,363 cft)
	Tare Weight	4,600 kgs (10,140 lbs)*
	Payload	25,880 kgs (57,060 lbs)
	Gross Weight	30,480 kgs (67,200 lbs)
Door Openings	Width	2,286mm (7'6")
Door Openings	Height	2,437mm (7'11"15/16)
